Alta X HD FPV System | DJI O4 & Walksnail Compatible | XM2 Store

$1,650.00 AUD

Available to order

Before ordering, please confirm compatibility, supplied components and dispatch readiness with our team.

Check my configuration ↗

Shipping calculated for your destination and cart before payment. International duties or tariffs may be payable separately.

Shipping & customs Returns & warranty rights Check compatibility

Product details & compatibility

XM2 HD FPV systems have been updated to support the new DJI O4 Air Unit, replacing the previous O3 platform. This update delivers improved signal stability, lower latency and long-term platform support - paired with a redesigned enclosure engineered specifically for O4 hardware.

What’s new:

Native support for DJI O4 Air Unit
Updated enclosure for improved fit and cooling
Optimised for next-generation DJI FPV transmission
Same XM2 mission-critical build standard

Who this system is for

Professional ALTA X operators
Cinematography, inspection, and industrial drone workflows
Operators requiring HD FPV + telemetry awareness
Teams running DJI O4 or Walksnail digital systems
Operators upgrading to DJI O4 HD FPV workflows

Who this is not for

Hobby or consumer drones
Plug-and-play FPV beginners
Non-ALTA X platforms

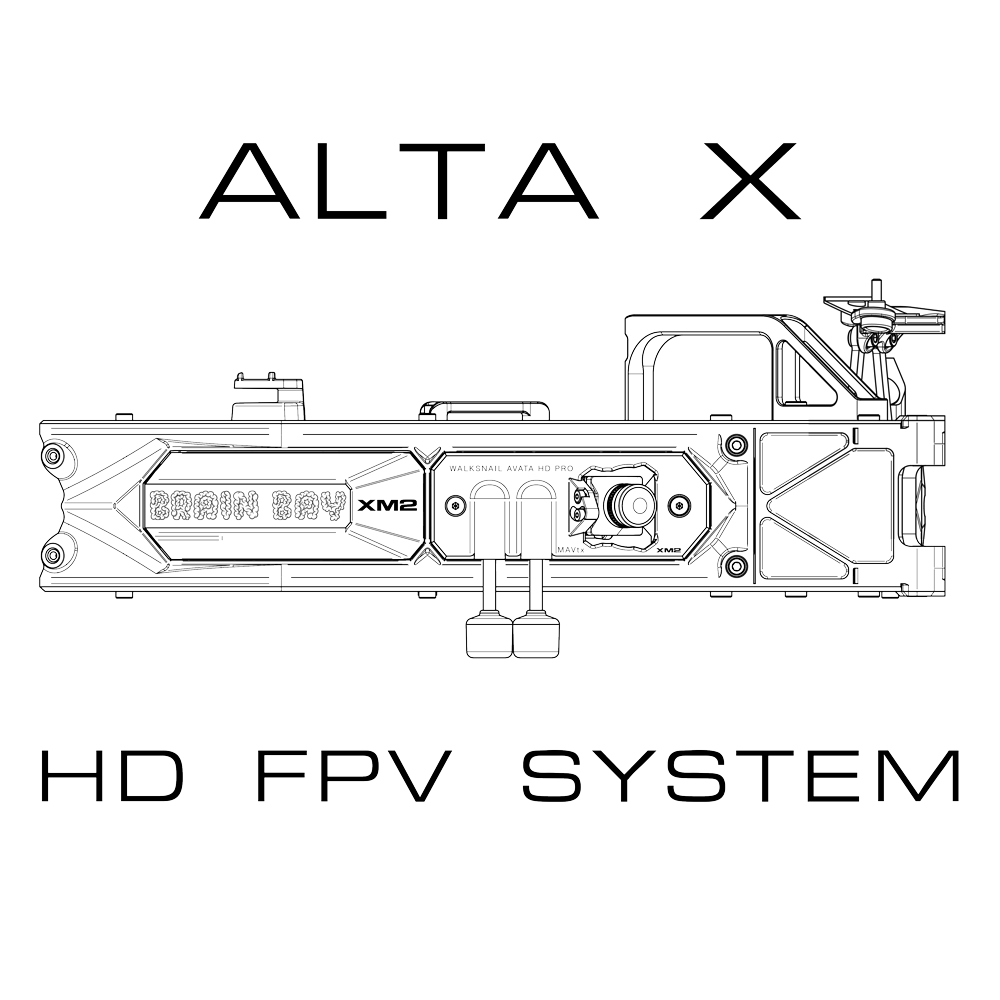

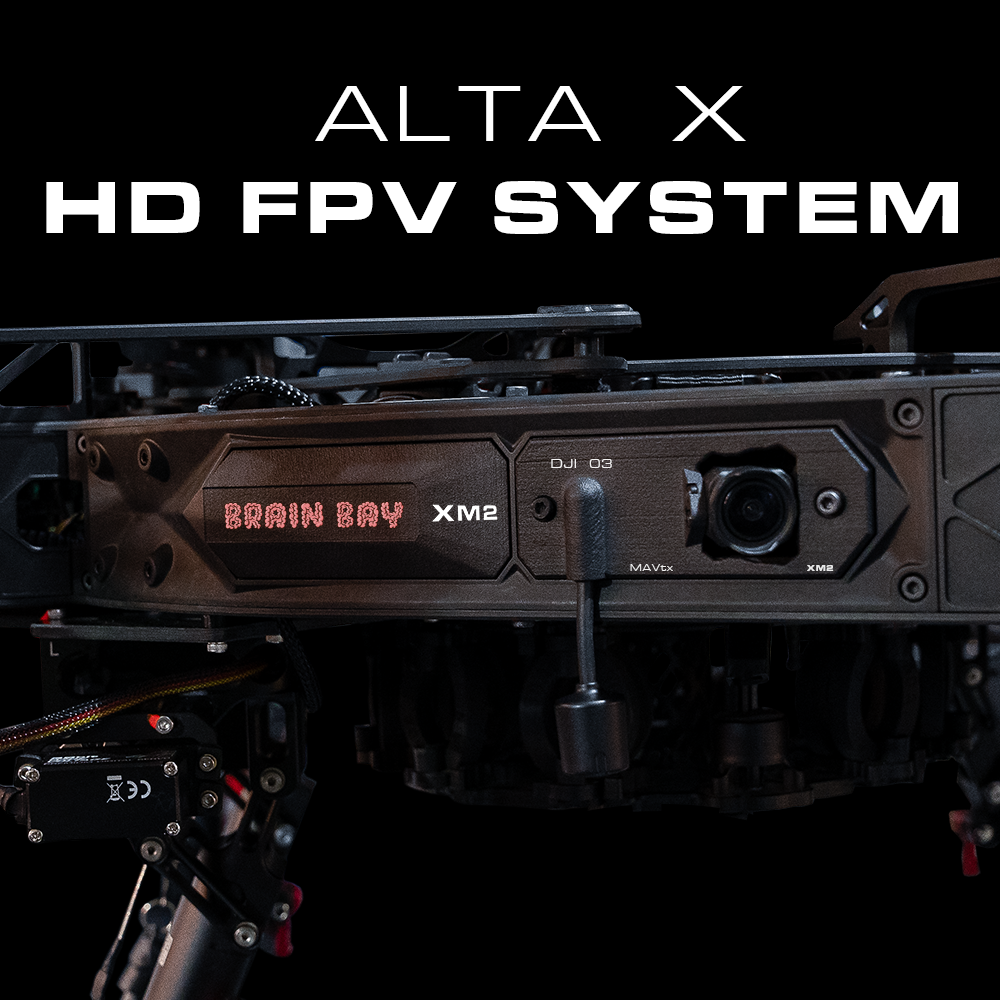

ALTA X HD FPV System Overview

The HD FPV System for ALTA X is made up of four components:

Alta X HD FPV Camera Bay
Alta X Brain Bay
HD FPV Video Transmitter & Camera (MSP display port digital video systems with Canvas Mode)
Freefly Systems ALTA X

Key Benefits

Purpose-built integration for Freefly ALTA X
Real-time HD FPV with integrated flight telemetry
Designed for operational safety and pilot awareness
Stable, thermally managed performance for professional use
Internal, serviceable, and future-ready design
Developed and supported by XM2 Labs in Australia

Enhance your piloting with the ALTA X HD FPV System.

This upgrade transmits real-time status messages from the ALTA X flight controller through high-definition video to your HD FPV goggles or field monitor. The ever-improving HD FPV signal provides low-latency, sharp, and stable video, removing the graininess often seen in analog systems.

The ALTA X HD FPV system wirelessly transmits critical flight telemetry, including battery voltage, heading, and ground speed, via Status Messages to a compatible 2.4 GHz or 5.8 GHz receiver or monitor. Compatible with the DJI O4 Air Unit, Walksnail Avatar HD Pro V2, and other digital video systems with Canvas Mode and an MSP display port.

Additional PWM Outputs: Alta X Retractable Landing Gear Upgrade

The system includes three user-configurable PWM outputs integrated into the Brain Bay, offering versatile control options. We recommend connecting XM2's Retractable Landing Gear for the ALTA X to one of these PWM outputs. This setup enhances safety by allowing the Brain Bay to manage the landing gear’s functionality. Specifically, it prevents the Alta X landing gear from retracting while the drone is on the ground and enables the legs automatically lower during auto landings.

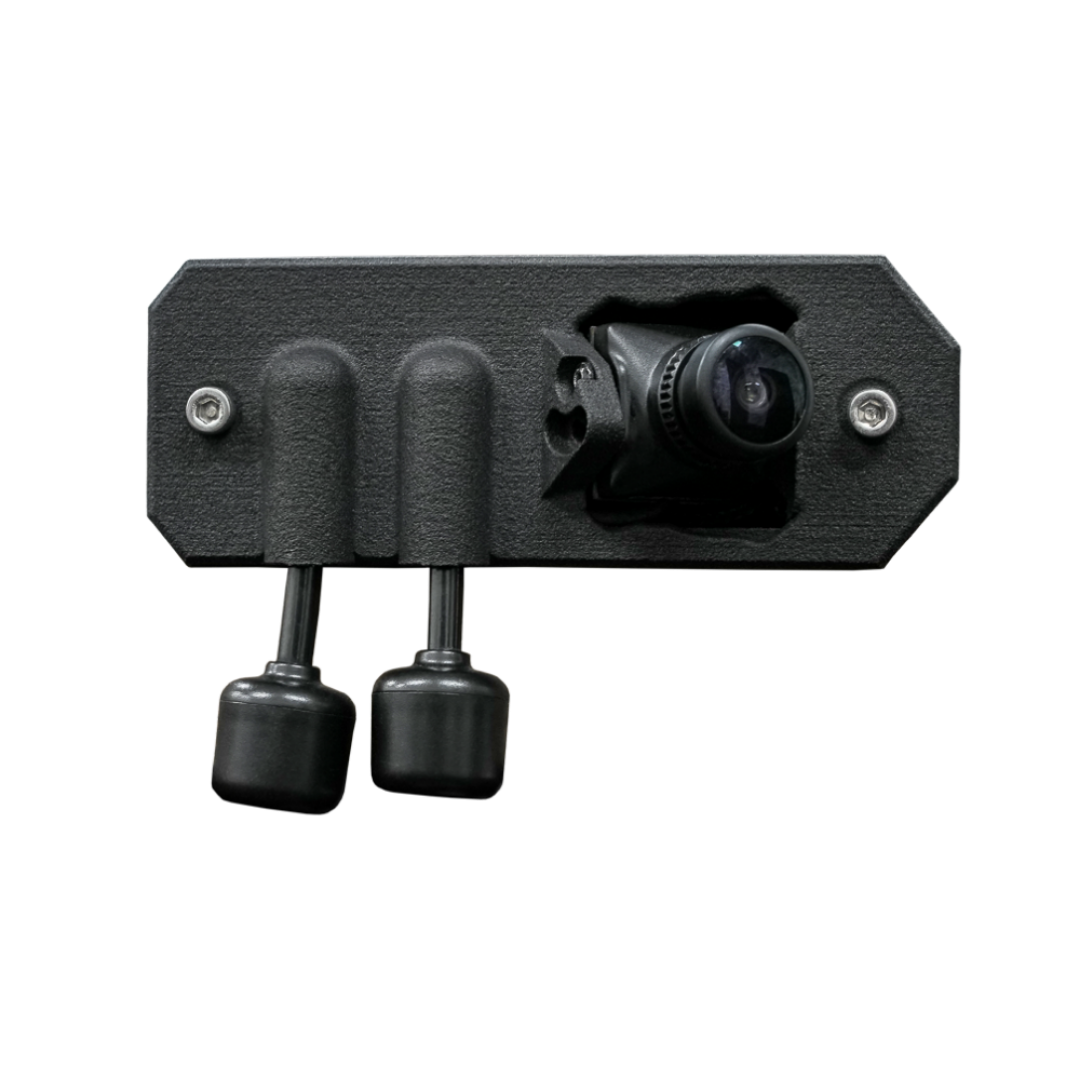

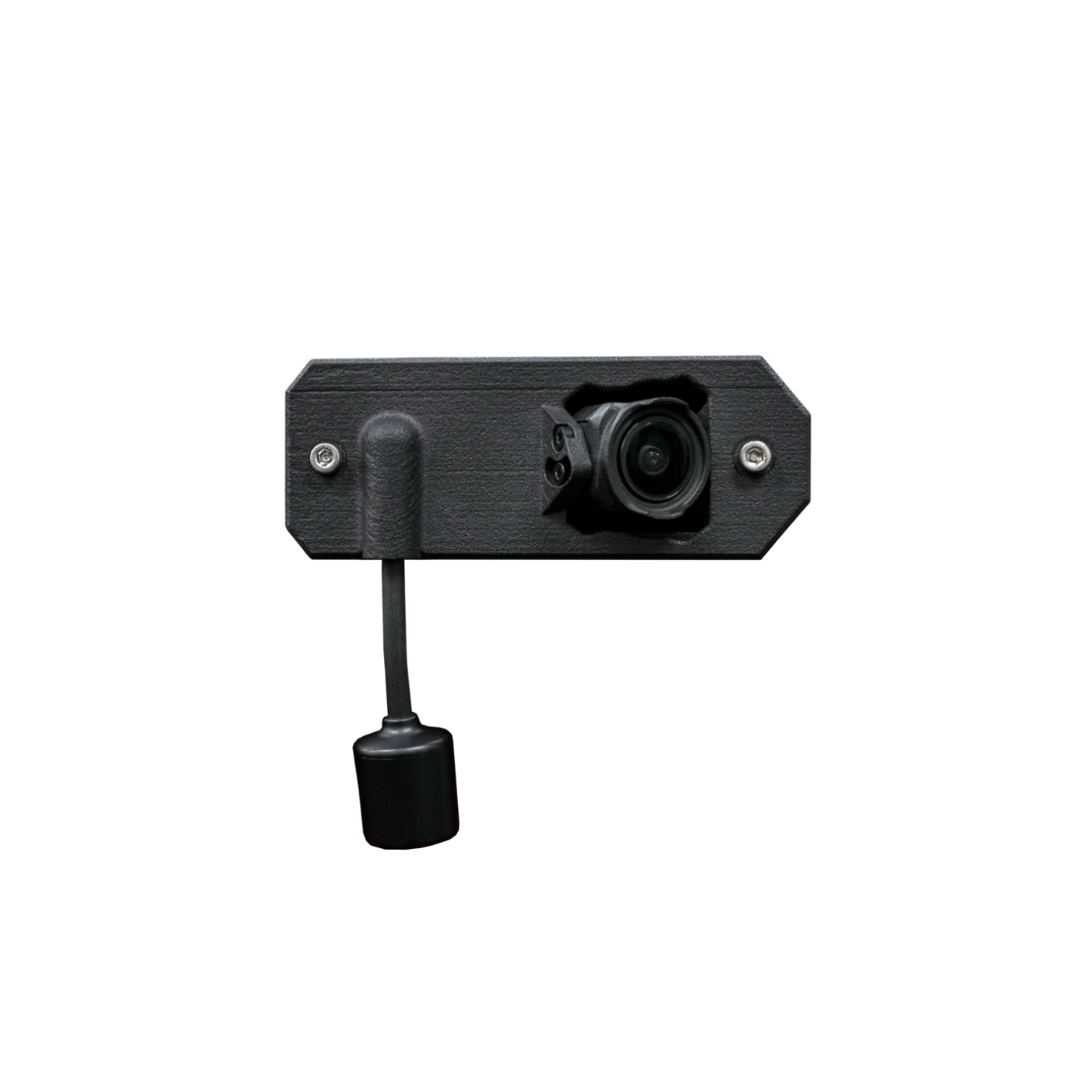

ALTA X HD FPV Camera Bay

The ALTA X HD FPV Camera Bay securely manages your HD FPV video transmitter and camera, enabling stable camera footage and active cooling for the device. You can adjust and lock the camera angle before takeoff. The design allows for easy installation of your camera and transmitter, and it fits directly into Bay 1 at the front of the ALTA X aircraft. It’s also been designed to be compatible with future digital VTX FPV camera systems.

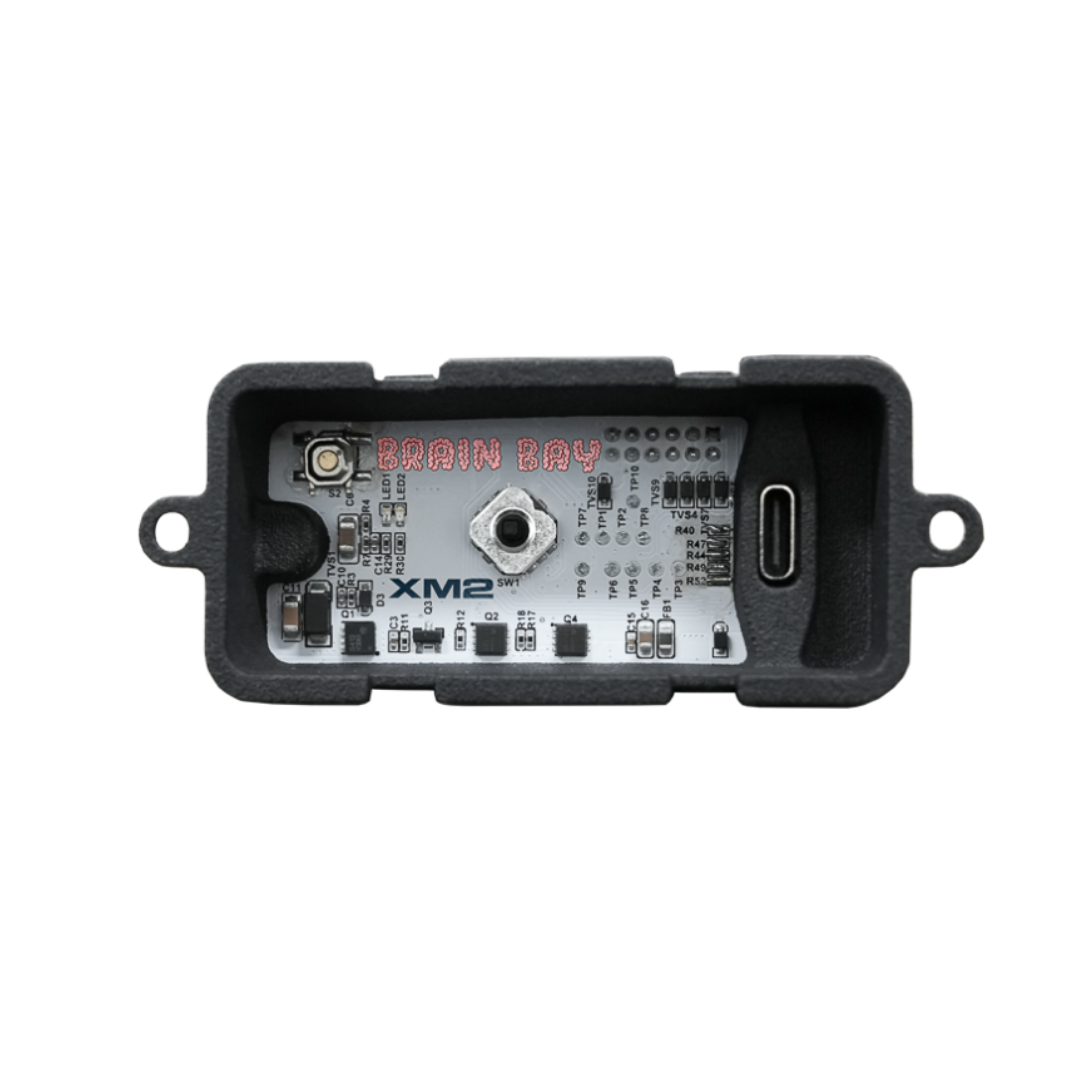

ALTA X Brain Bay

The ALTA X Brain Bay serves as the core component of the HD FPV ecosystem, housing our MAVTx operating system developed by XM2 Labs. MAVTx facilitates seamless communication among the ALTA X flight controller, the Brain Bay, and the HD FPV Camera bay, granting users full access and control of the Digital OSD. Additionally, the Brain Bay features three user-configurable PWM outputs, seamlessly integrated for enhanced payload control options.

HD FPV Video Transmitter & Camera

Wirelessly transmit and receive high-definition video and essential flight telemetry: such as battery voltage, heading, and ground speed between the Alta X and compatible 2.4 GHz - 5.8 GHz transmitter / receiver.

Note: Power is required and not supplied.

VTX Compatibility (tested)

DJI O4+ Video Transmission Module
Walksnail Avatar HD VTX V2 Module
Walksnail Avatar HD VTX V2 Module (Dual Antenna Version)

FPV Camera Compatibility (tested)

DJI O4 Air Unit Camera Module
Walksnail Avatar HD Pro Camera
Walksnail Avatar HD V2 Camera

Receiver Compatibility (tested)

Walksnail Avatar FPV VRX (HDMI Receiver Unit)
DJI Goggles 3
DJI Goggles 2
DJI Goggles Integra
Apple Ipad (via compatible DJI FPV Goggles)

ALTA X HD FPV System Power Compatibility (tested)

12V DC to DC Regulator for Alta (recommended)
Alternatively, connect the Brain Bay Power Input Cable (XT60 or XT30) to a 7.4V - 25.2V power source. Plug the JST-PH 2-pin connector into the Brain Bay power input.

Warning: The Brain Bay must be powered by a 2S-6S power source (7.4V - 25.2V). Connecting the Brain Bay to ALTA X flight packs will cause permanent damage to both the Brain Bay and HD VTX.

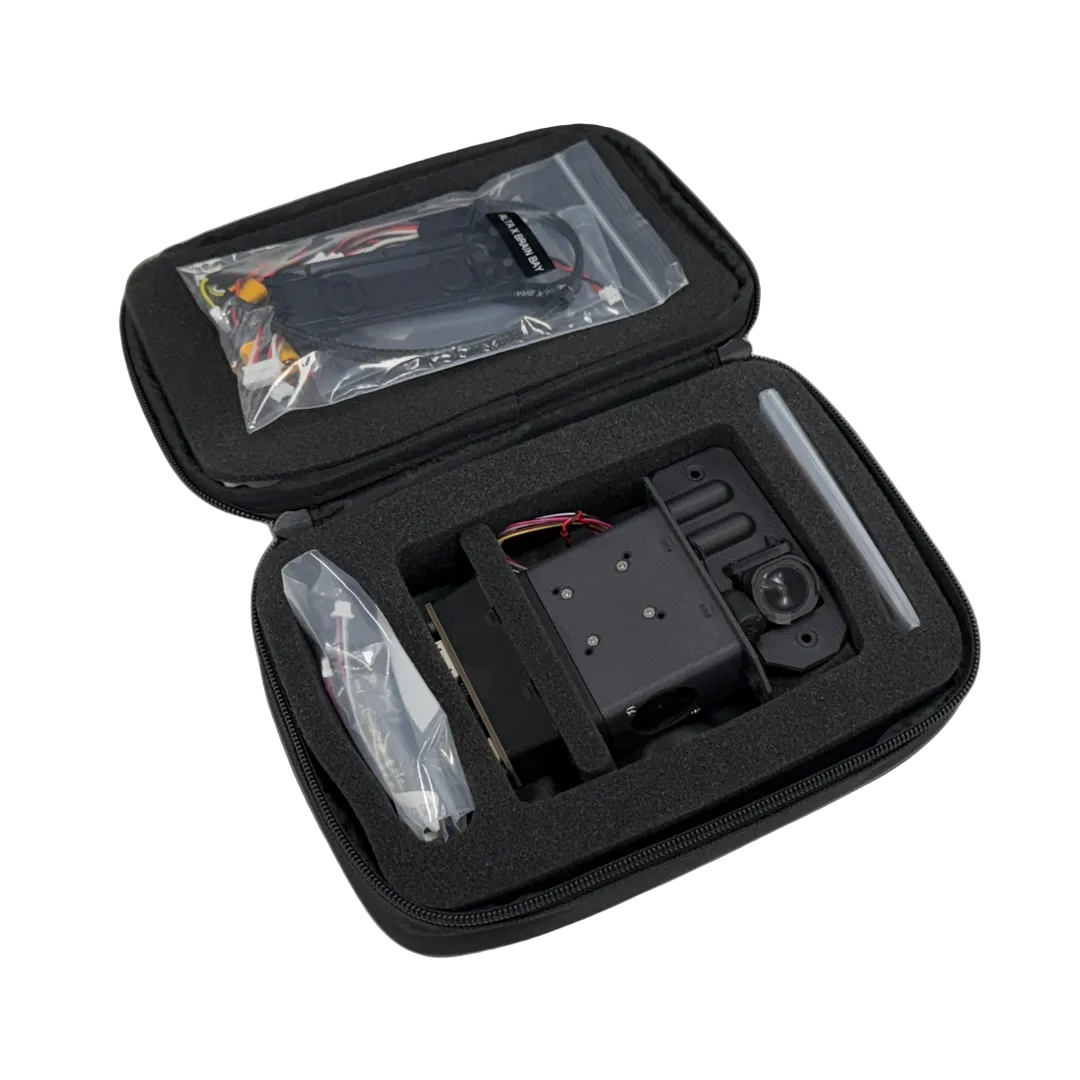

Available in Two Versions

BYO (Build Your Own): Users provide and install their own Digital HD FPV Camera kit. This option offers flexibility for users who prefer to customize their setup. Includes install kits for Caddx Walksnail Avatar HD Pro (Dual Antennas) and DJI 04 Air Unit.
Best for experienced installers who already own a compatible digital VTX.
XM2-Installed Version: XM2 provides and installs the camera system. This version includes professional installation and ensures optimal performance. Includes install additional kits for Caddx Walksnail Avatar HD Pro V2 (Dual Antennas) and DJI 04 Air Unit.

Features

Brain Bay

MAVTx software installed.
Three additional user-configurable PWM outputs for additional payload control. Integration with the XM2 Retractable Landing Gear for enhancing retract functionality.
Internal Bay Mounting: ALTA X slots into original case without needing to remove the system.
Full communication via the Brain Bay between the FPV Air Unit and the ALTA X Flight Controller.
Tool-less access for firmware updates and settings changes.

HD FPV Camera Bay

Internal mounting solution: ALTA X slots into original case without needing to remove the system.
Actively cooled VTX via onboard fan to prevent overheating during operation.
Fixed camera tilt for customizable camera angles.
VTX Mounting options for DJI O4 Air Unit, Caddx Walksnail Avatar HD V2 and other MSP display port digital video systems with Canvas Mode (check Brain Bay compatibility).
The HD FPV Camera Bay has been designed for user-friendly, DIY camera installations. Its forward-looking design aims to be compatible with future digital VTX FPV camera systems.

New Enclosure Design for DJI O4

To support the new DJI O4 platform, the HD FPV Camera Bay has been redesigned with updated internal geometry, improved airflow and reinforced mounting points - ensuring long-term reliability in demanding operational environments.

This enclosure update maintains full serviceability while improving thermal management for high-performance digital FPV systems.

MAVtx OSD Software

Purpose-built software that delivers real-time flight telemetry directly into your HD FPV feed — improving situational awareness and operational safety.

Full OSD support for HD FPV DJI O4, Walksnail Avatar HD Pro, Canvas Mode, and other MSP display port digital video systems.
Captures MAVLink telemetry data from the ALTA X flight controller and instantly transmits it to your HD OSD in real-time.
ALTA X Status text feature displaying logging file name, in-flight warnings, and reasons for Alta X failure to arm.
Automatically starts and stops onboard and goggle DVR recording for seamless footage capture.
Sends arm/disarm signal to VTX, enabling and disabling high power mode for thermal control.
Customizable OSD layout for personalized display preferences.
Compatible with any system that uses Canvas Mode, including PX4.

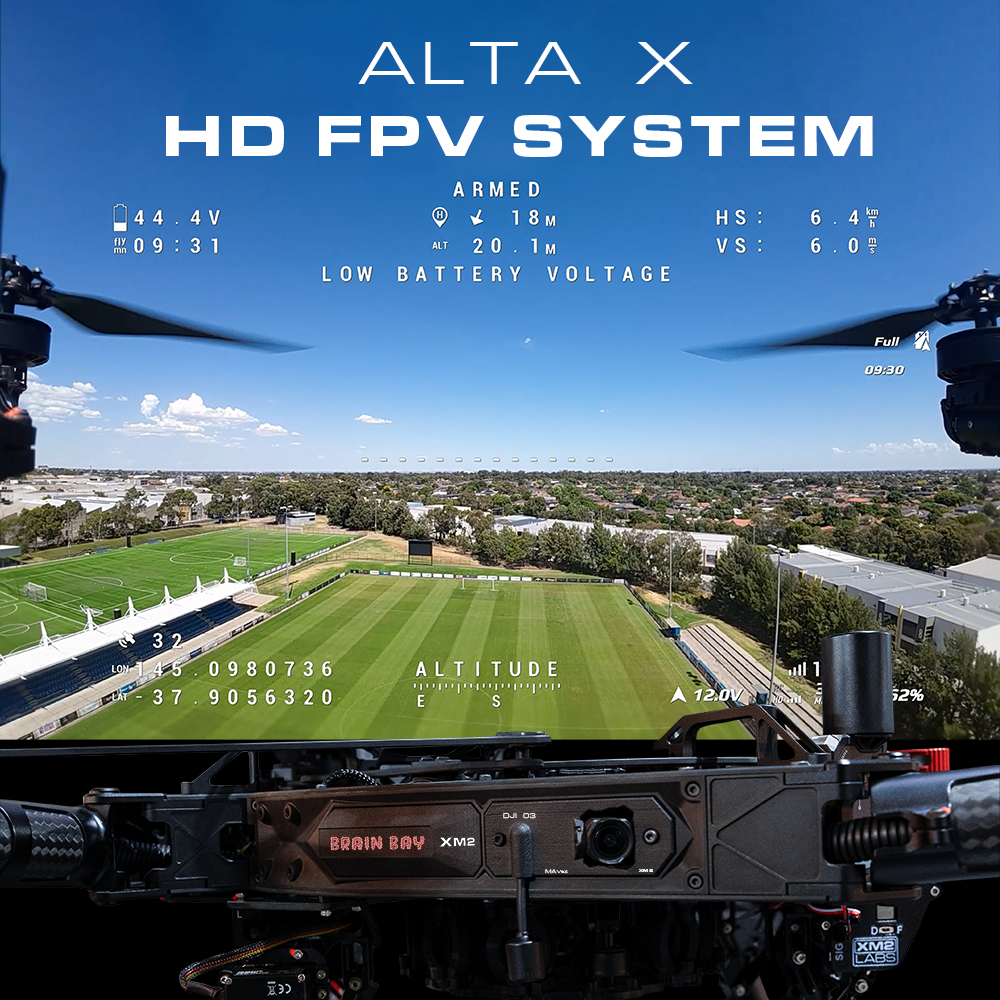

Digital OSD Features:
- ALTA X GPS satellite count, altitude, latitude, longitude, and ground speed data for comprehensive flight monitoring, current draw and mAh drain (if ALTA X version supports it) for power consumption analysis.
- Total battery voltage display for monitoring power levels.
- Flight mode, home arrow, and flight timer for enhanced navigation.
- Compass and artificial horizon for improved spatial awareness.
- Vertical speed and arm status indicators for flight performance evaluation.
- Link quality monitoring (if set up to output on channel 8) for signal strength assessment.
- Average cell voltage for battery health monitoring.
- Battery warning with customizable cut-off voltages for optimal power management.
- Battery percentage calculated and reported by the ALTA X for accurate battery status updates.
- Overlay OSD in DVR.

Designed, manufactured, and supported by XM2 Labs in Melbourne, Australia.
This system has been developed through real-world ALTA X operations and is actively used in professional environments.
