Overview

The Ronin 2 battery block mounts to the pan axis via a quick-release interface that is not fully rigid. In vibration-prone setups - particularly when mounted to vibration isolators or vehicles - this can introduce unwanted movement, exciting pan-axis vibration and instability.

The XM2 Battery Strap Bracket increases rigidity at the battery block interface, shifting the system’s natural frequency and reducing the likelihood of pan-axis shake.

Designed for professional builds where reliability and stability are critical.

---

Key Benefits

• Improves pan-axis stability by rigidly securing the battery block
• Reduces vibration and shake in isolated or vehicle-mounted setups
• Enables more precise pan-axis tuning
• Simple, non-permanent upgrade for demanding use cases

---

Features

• Quick, straightforward installation
  Replaces two factory bolts using supplied hardware
• Tool-less battery access
  Loosen the Velcro strap to remove the battery block
• Aerospace-grade titanium construction
  High strength with minimal weight
• Black anodised finish
  Durable, low-reflectivity, and suitable for on-set environments
• Integrated M4 threaded holes
  For storing hardware when not in use

---

Specifications

• Weight: 45 grams
• Material: Titanium
• Finish: Black anodised

---

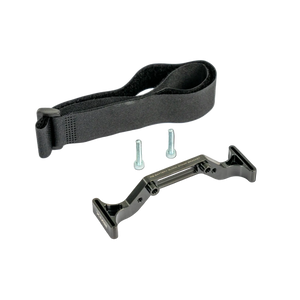

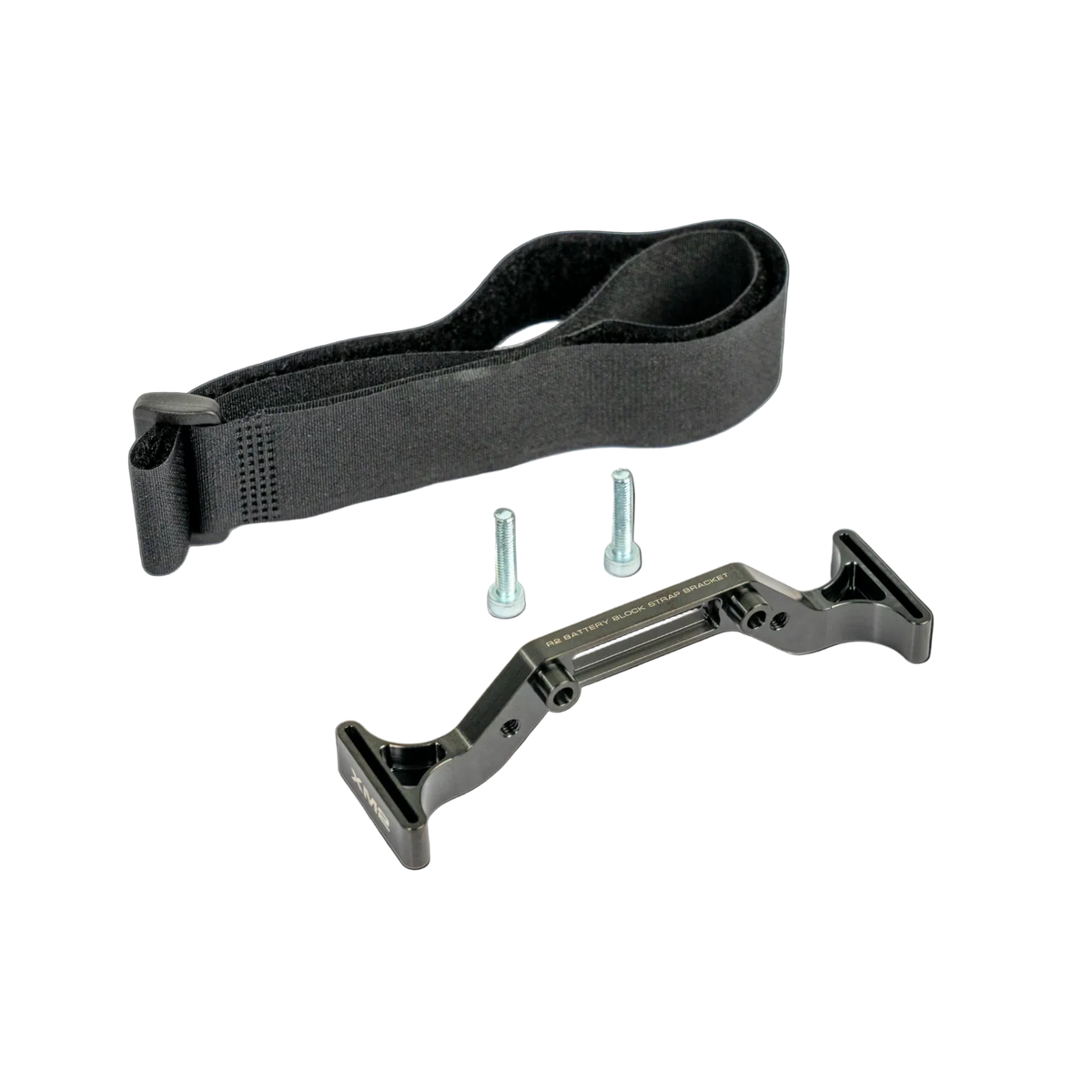

What’s Included

• 1 × Titanium battery strap bracket
• 2 × M4 × 20 socket cap head bolts
• 2 × Velcro straps (one spare)

---

Compatibility & Notes

• Designed for DJI Ronin 2
• Can remain installed when the gimbal is stored in its case

---
