XM2 | HD FPV System for ALTA X | PRE ORDER | Brain Bay + HD FPV Camera Bay | ALTA X + DJI 03 Air Unit or Walksnail Avatar HD Pro

VTX Options

XM2’s HD FPV System for ALTA X provides the Freefly Systems ALTA X with full OSD support for DJI O3 Air Unit, Walksnail Avatar HD Pro, and any other MSP display port digital video systems with Canvas Mode.

Three additional user-configurable PWM outputs are integrated into the system for versatile control options. This includes seamless integration with the XM2 Retractable Landing Gear, enhancing safety features such as preventing retraction when the drone is not airborne and automatically lowering the legs during auto landings.

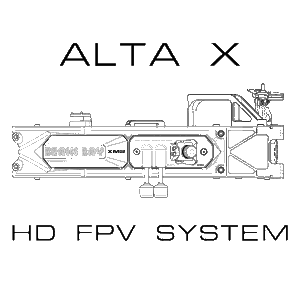

The HD FPV System for ALTA X is made up of two crucial parts: the Brain Bay and the HD FPV Camera Bay.

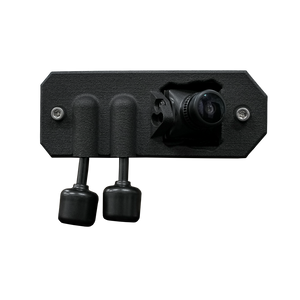

The ALTA X HD FPV Camera Bay securely houses the user's HD FPV Air Unit for stable footage and provides cooling to the video transmitter. Users have the flexibility to manually adjust and lock the camera angle prior to takeoff. The HD FPV Camera Bay has been designed for user-friendly, DIY camera installations and its forward-looking design aims to be compatible with future digital VTX FPV camera systems. Easily integrated, both the camera and bay are designed to be user-installed, and the ALTA X HD FPV Camera Bay slots directly into the ALTA X Bay 1 at the front of the aircraft.

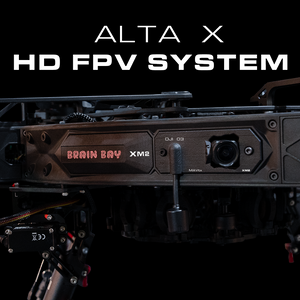

The ALTA X Brain Bay serves as the core component of the HD FPV ecosystem, housing our MAVTx operating system developed by XM2 Labs. MAVTx facilitates seamless communication among the ALTA X flight controller, the Brain Bay, and the HD FPV Camera bay, granting users full access and control of the HD OSD. Additionally, the Brain Bay features three user-configurable PWM outputs, seamlessly integrated for enhanced payload control options

Features

Brain Bay

  • MAVTx software installed.
  • Three additional user-configurable PWM outputs for additional payload control. Integration with the XM2 Retractable Landing Gear for enhancing retract functionality.
  • Internal Bay Mounting: ALTA X slots into original case without needing to remove the system.
  • Full communication via the Brain Bay between the FPV Air Unit and the ALTA X Flight Controller.
  • Tool-less access for firmware updates and settings changes.

HD FPV Camera Bay

  • Internal mounting solution: ALTA X slots into original case without needing to remove the system.
  • Actively cooled VTX via onboard fan to prevent overheating during operation.
  • Fixed camera tilt for customizable camera angles.
  • VTX Mounting options for DJI O3 Air Unit, Caddex Walksnail Avata HD and other MSP display port digital video systems with Canvas Mode.
  • The HD FPV Camera Bay has been designed for user-friendly, DIY camera installations. Its forward-looking design aims to be compatible with future digital VTX FPV camera systems.

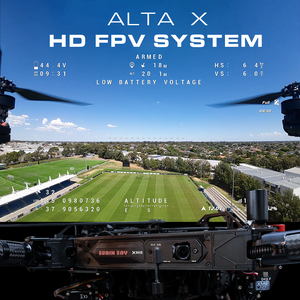

MAVtx OSD Software

  • Full OSD support for HD FPV DJI O3, Walksnail Avata HD Pro, Canvas Mode, and other MSP display port digital video systems.
  • Captures MAVLink telemetry data from the ALTA X flight controller and instantly transmits it to your HD OSD in real-time.
  • ALTA X Status text feature displaying logging file name, in-flight warnings, and reasons for Alta X failure to arm.
  • Automatically starts and stops onboard and goggle DVR recording for seamless footage capture.
  • Sends arm/disarm signal to VTX, enabling and disabling high power mode for thermal control.
  • Customizable OSD layout for personalized display preferences.
  • Compatible with any system that uses Canvas Mode, including PX4.
  • HD OSD Features:
    • ALTA X GPS satellite count, altitude, latitude, longitude, and ground speed data for comprehensive flight monitoring, current draw and mAh drain (if ALTA X version supports it) for power consumption analysis.
    • Total battery voltage display for monitoring power levels.
    • Flight mode, home arrow, and flight timer for enhanced navigation.
    • Compass and artificial horizon for improved spatial awareness.
    • Vertical speed and arm status indicators for flight performance evaluation.
    • Link quality monitoring (if set up to output on channel 8) for signal strength assessment.
    • Average cell voltage for battery health monitoring.
    • Battery warning with customizable cut-off voltages for optimal power management.
    • Battery percentage calculated and reported by the ALTA X for accurate battery status updates.
    • Overlay OSD in DVR.

Shipping June 2024

Made in Melbourne, Australia

Free Shipping Worldwide.

Limited Stock.

HD FPV Camera Bay for ALTA X

Specifications

Supported HD FPV Bay Face Plates

  • DJI O3 Camera Face Plate
  • Walksnail Avata HD Camera Face Plate

Camera Mounting Holes

  • M2 x 6mm

VTX Mounting Holes

  • 20mm x 20mm & 25.5mm x 25.5mm

Camera Bay Mounting Holes

  • M3 x 72mm

Active Cooling

  • 5V 3.9 CFM Fan

Antenna Mounting

  • 1x/2x Toolless Snap Fit

Adjustable Fixed Camera Angle

  • -30° to +30°

Install Location

  • Freefly Systems ALTA X: BAY 1

Dimensions

  • 54mm x 89mm x 34mm

Weight

  • 27 Grams (without DJI 03 Air Unit)
  • 75 Grams (with DJI 03 Air Unit)



Brain Bay for ALTA X

Specifications

Power

  • 2S-6S Input – 7.4-25.2V
  • Not reverse polarity protected
  • Consumption <300mA @ 7.4V (Excluding VTX)
  • JST PH 2-pin
  • Recommended Power Input Regulator: Freefly Systems ALTA X 12V Voltage Regulator (Tested)

MAVLink Input

  • MAVLink V2 56000 Biard
  • JST GH 6-pin

VTX Output

  • MSP DisplayPort/Canvas Mode - 115200baud
  • Input power passed through on VTX Power Pin
  • JSH SH 6-pin

USB

  • USB Type-C (Firmware Updating)
  • User Interface

OSD Menu Configuration

  • 5-Way Navigation Joystick

Weight

  • 20 Grams

Dimensions

  • 63mm x 23mm x 21mm

Install Location

  • Freefly Systems ALTA X: Bay 2

PWM Outputs

  • 3x User Configurable PWM outputs
  • Servo Connector

RC Output

  • SBUS (From DJI O3 Air Unit)
  • Servo Connector

Operating Temperature

  • -20ºC to 40ºC | -22ºF to 104ºF

Supported VTX OSD

  • DJI O3, Walksnail Avata HD Pro, MSP display port digital video systems with Canvas Mode

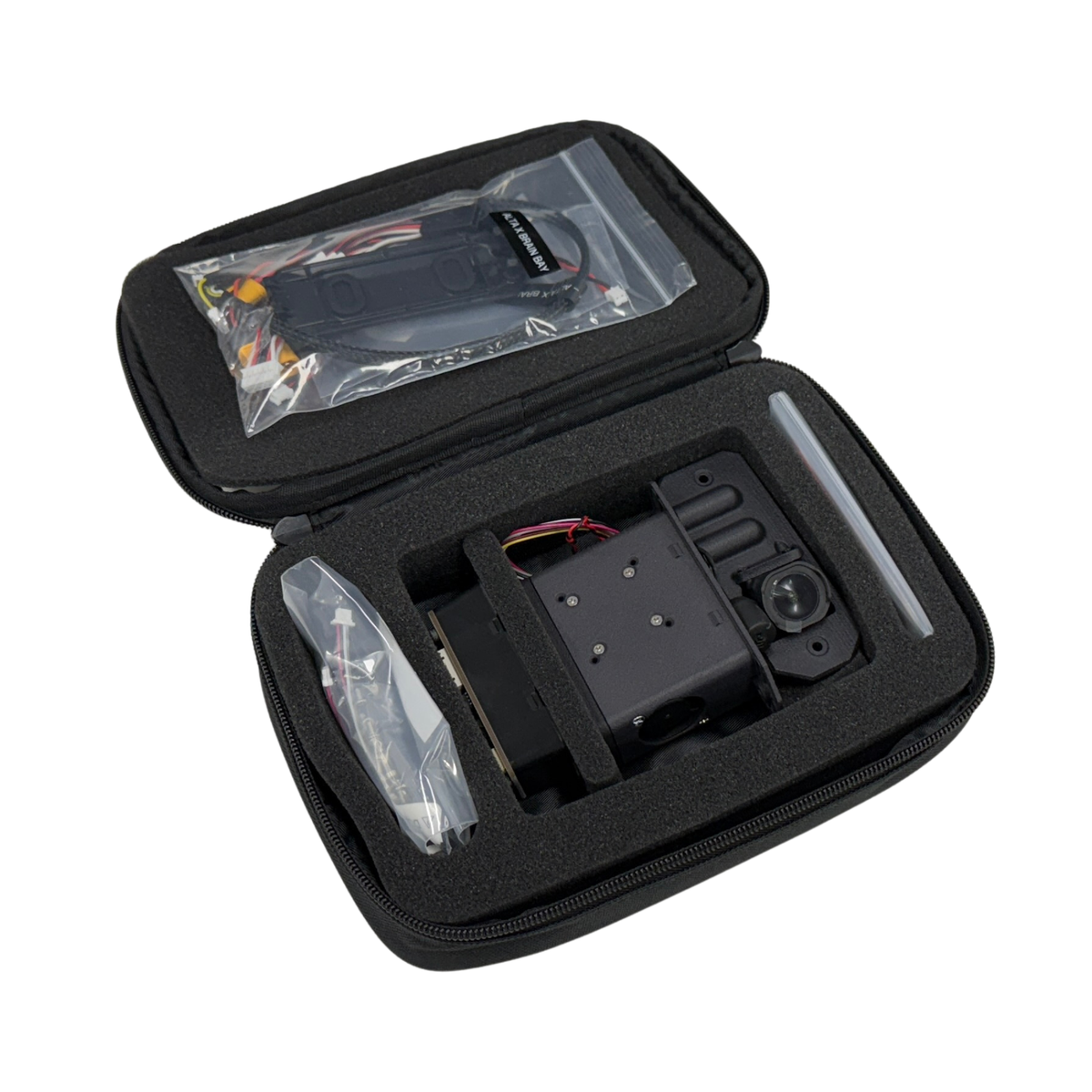

In the Box

Brain Bay for Alta X

  • 1x XM2 Brain Bay for Alta X
  • 2x Mounting Screws
  • 1x Power Input Cable
  • 2x Rubber Grommets
  • 1x MAVLink Input Harness
  • 1x PWM/SBUS Breakout Harness

HD FPV Camera Bay for Alta X

  • 1x XM2 HD FPV Camera Bay for Alta X
  • 1x VTX Cooling Fan
  • 1x Fixed Camera Bay Enclosure Back Plate
  • 1x VTX Air Guide Plate
  • 2x VTX Air Guide Mounting Bolts
  • 1x DJI O3 Camera Faceplate
  • 1x Walksnail Avata Camera Faceplate
  • 4x DJI O3 Air Unit Mounting Bolts
  • 4x Walksnail Avata VTX Mounting Bolts
  • 2x Walksnail Avata USB-C Mounting Bolts
  • 4x DJI O3 Camera Bolts
  • 4x Walksnail Camera Bolts
  • 2x Faceplate Mounting Bolts
  • 2x TPU Antenna Holder
  • 1x DJI O3 VTX Cable Harness
  • 1x Walksnail VTX Cable Harness
